Home > OLT > XG(S)-PON OLT

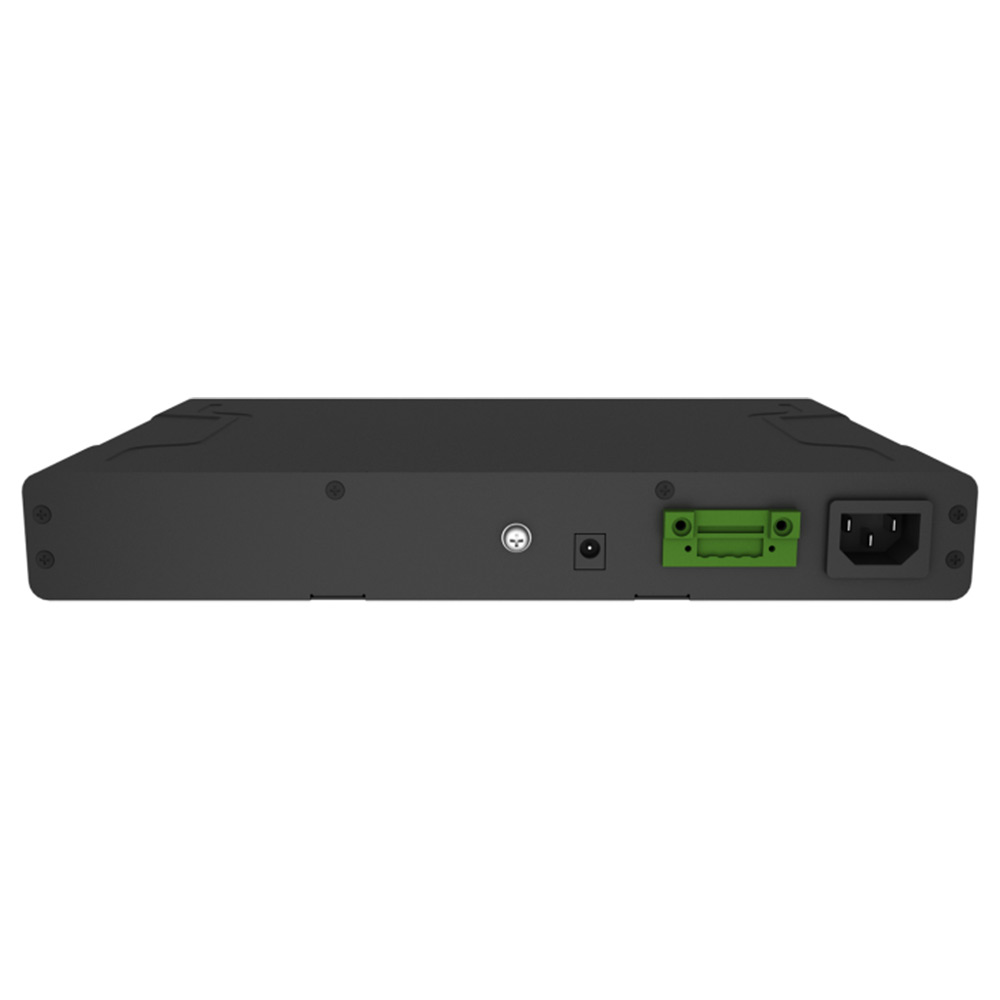

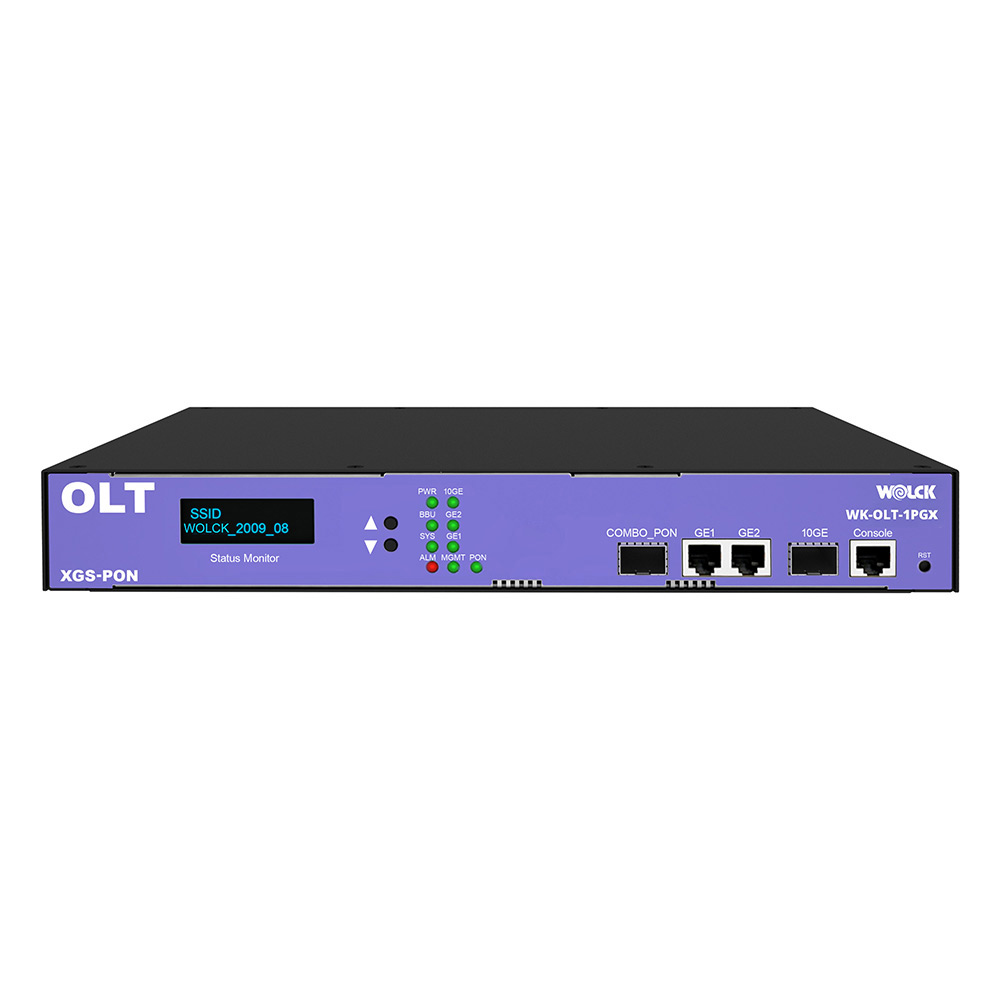

1 Port Mini GPON/XGS-PON 10G Combo OLT
1 Port Mini GPON/XGS-PON 10G Combo OLT 1 Port Mini GPON/XGS-PON 10G Combo OLT 1 Port Mini GPON/XGS-PON 10G Combo OLT 1 Port Mini GPON/XGS-PON 10G Combo OLT 1 Port Mini GPON/XGS-PON 10G Combo OLT 1 Port Mini GPON/XGS-PON 10G Combo OLT
  • 1 Port Mini GPON/XGS-PON 10G Combo OLT
  • 1 Port Mini GPON/XGS-PON 10G Combo OLT

1 Port Mini GPON/XGS-PON 10G Combo OLT

Item No.: WK-OLT-1PGX-B

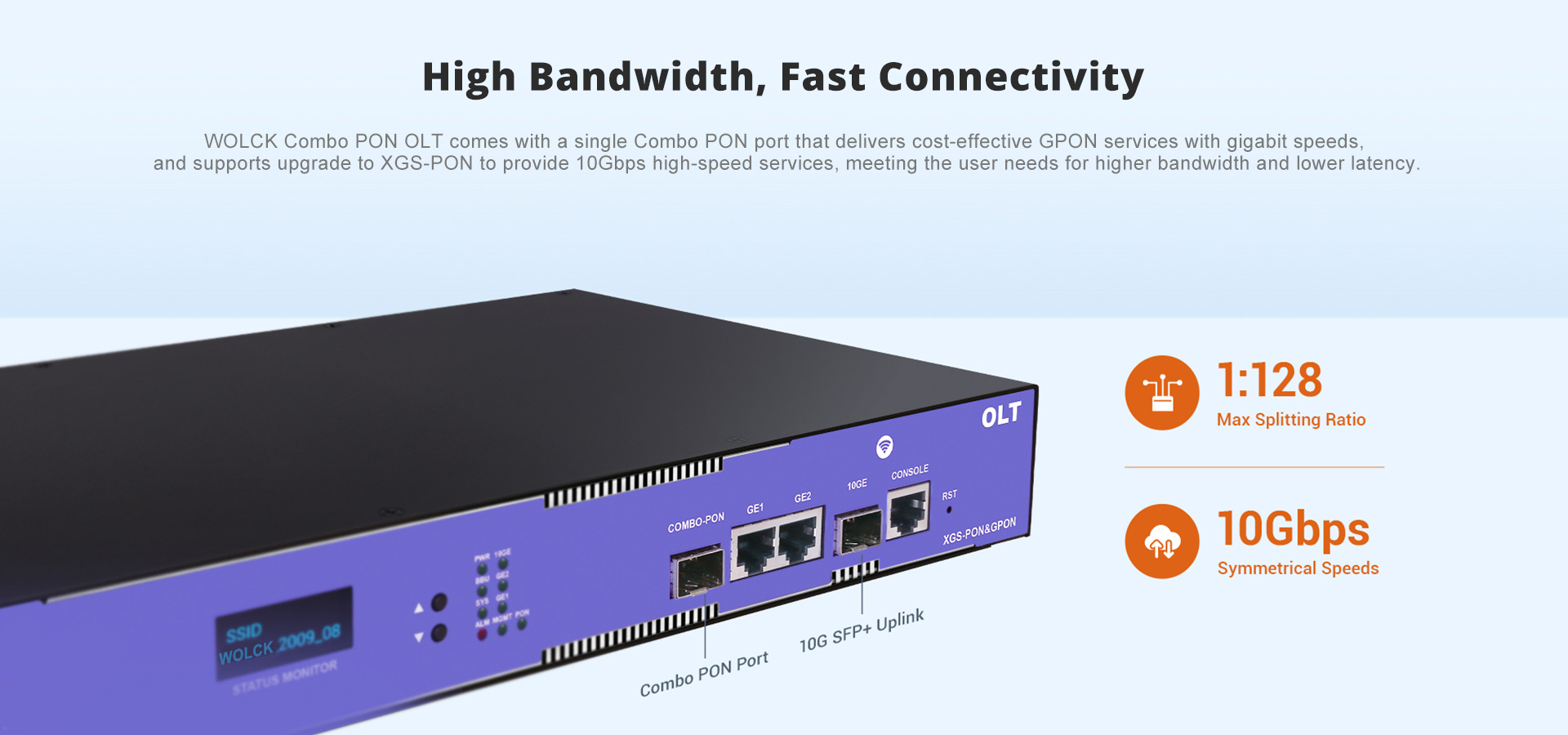

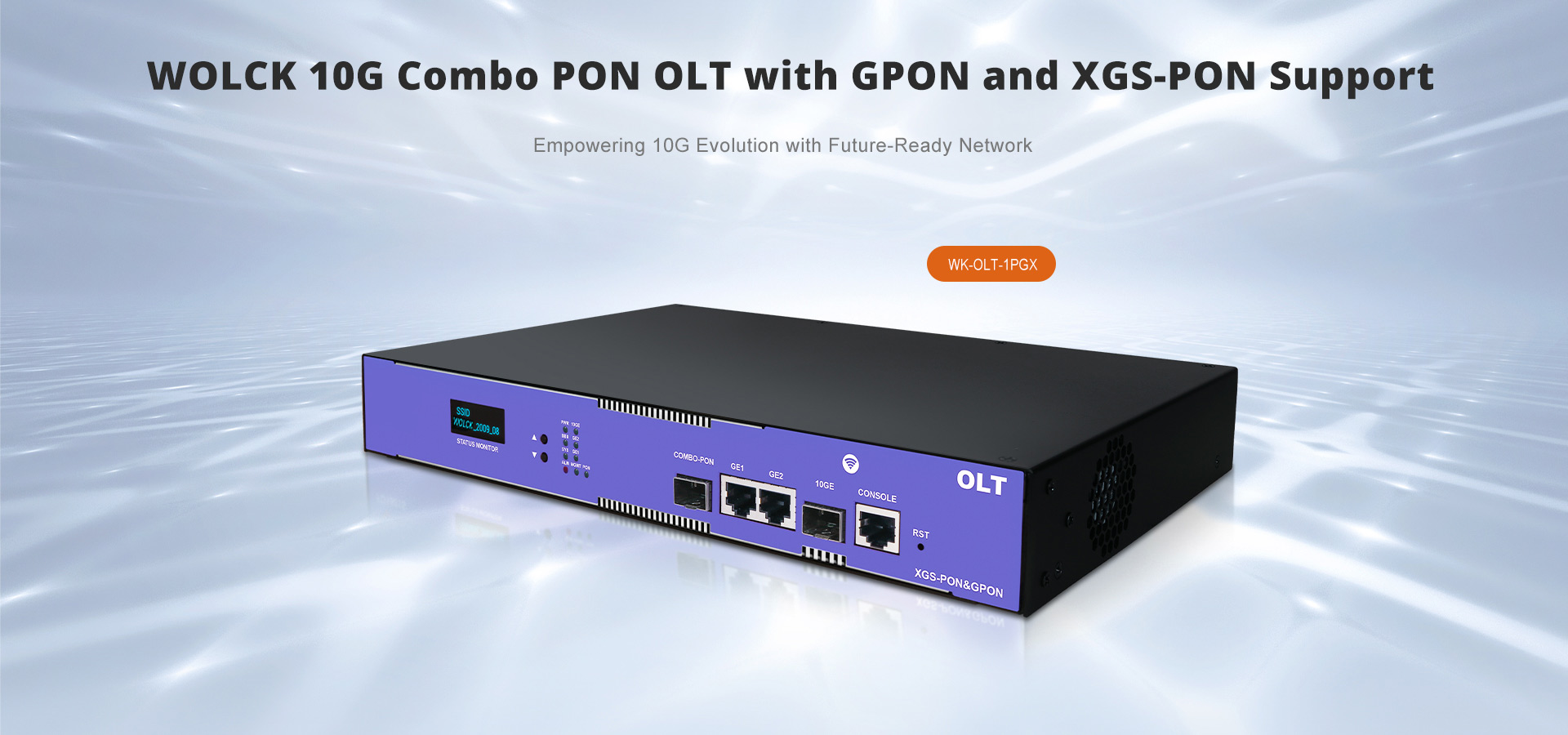

XGS-PON&GPON OLT WK-OLT-1PGX  completely meets relative standard of ITU-T G.9807.1. It is 1U rack-mounted device with 2 uplink GE ports, 1 10GE uplink ports and 1 XGS-PON&GPON(Combo PON) ports. The XGS-PON&GPON port supports the splitting ratio of 1:128. The XGS-PON&GPON system supports up to 128 terminal connections.
Request Quote
Order Now
Description Product Specification Review
Description
Product Specification
Mechanics

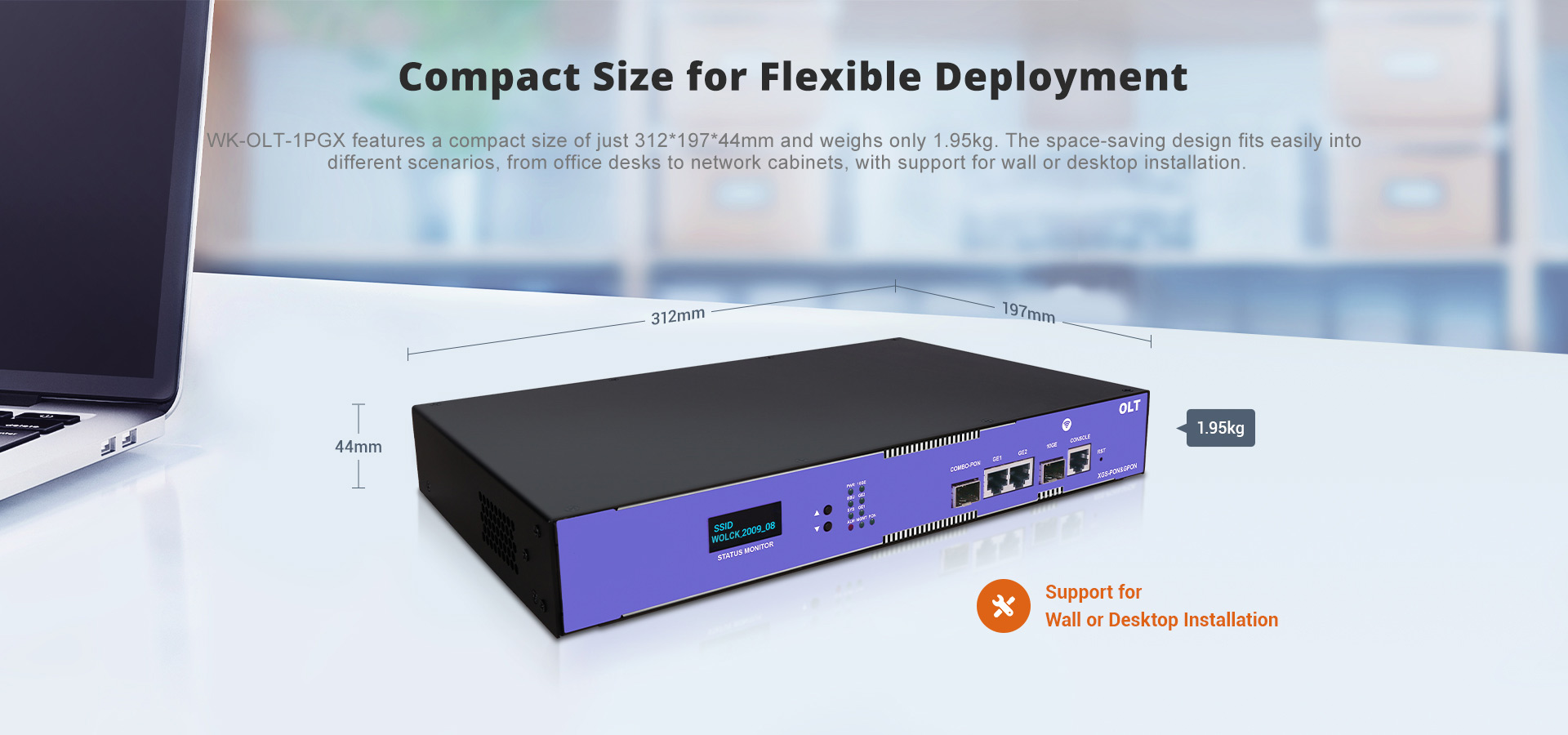

Dimensions
312.8mm(L)*197mm(W)*44mm(H)
Weight
1.95Kg
Hardware
Uplink Port
GE port
2* 10/100/1000M auto-negotiation Ethernet ports
10-Gigabit port
1* SFP+ interfaces
PON Port
Quantity
1
Physical Interface
SFP slot
Max Splitting Ratio
1:128
Management Port
1* CONSOLE local management port
PON Port Attribute
Transmission Distance
20KM
Port Rate
XGS-PON: Downstream: 10Gbps Upstream: 10Gbps
GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps
Wavelength
XGS-PON: Forwarding: 1577nm Receiving: 1270nm
GPON: Forwarding: 1490nm Receiving: 1310nm
Interface Type
SC/UPC
