Functional Feature XGSPON ITU-T G.984.1-4 ITU-T G.988 /ITU-T G.9807.1 32 TCONTs /256GEM ports 8 Egress queues per TCONT at least VLAN or VLAN plus priority gem mapping mode SN/LOID/SN+ Password authentication Performance monitoring: eth/Gem port Dying gasp
Layer 2 Features MAC learning (SVL)/aging Support max frame length to1518 bytes VLAN tagging for untagged packets Support VLAN 1-4094 VLAN transparent/translation
QoS Support 8 Queues with Strict Priority Ethernet port rate limitation 802.1ppriority SP/WRR/SP+WRR Service flow classification
Multicast IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376) IGMP snooping and IGMP Proxy MLD v1/v2
Management OMCI/Web UI/TR069 SSH management with CLI commands Dual-system software backup and rollback

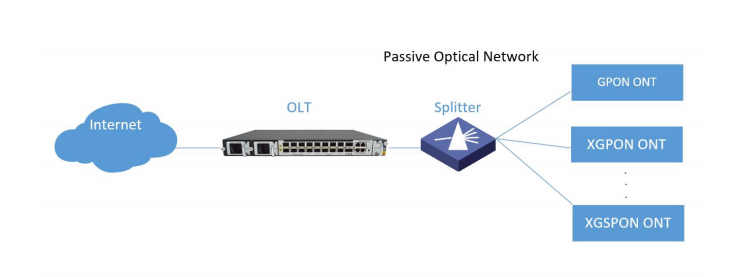

Product Application
Product Specification
CPU Frequency
1GHz dual-core
Flash
128MB NAND
Memory
256MB DDR4
LED
POWER+PON+LOS+10GE+1GE

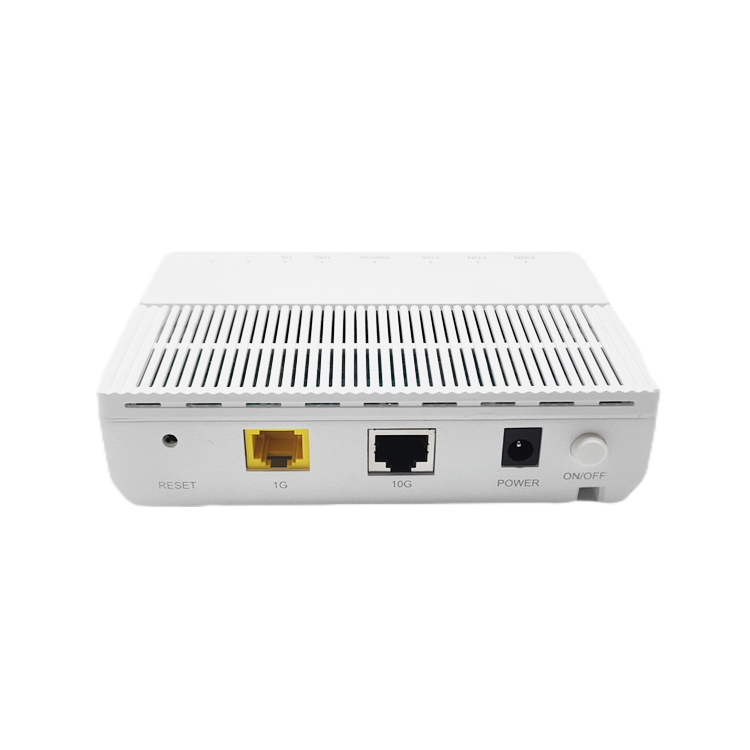

Port
1*1RJ45(10GE)
1*1RJ45(GE)
1*Reset+1*Power Jack
1*SC/APC (or SC/UPC)
1*DC in
Size
130*90*37 mm
consumption
≤12W
Ethernet Port
Ethernet port-based VLAN tags and tag removal VLAN transparent and aggregation MAC address learning 100/1000/10000Mbps Autonegotiation 10/100/1000Mbps Autonegotiation
