The WK-OLT-2PG is a highly integrated, medium-capacity GPON OLT designed for carriers, ISPs, enterprises, and campus applications. It complies with ITU-T G.984/G.988 technical standards, offering excellent openness, strong compatibility, high reliability, and comprehensive software features.

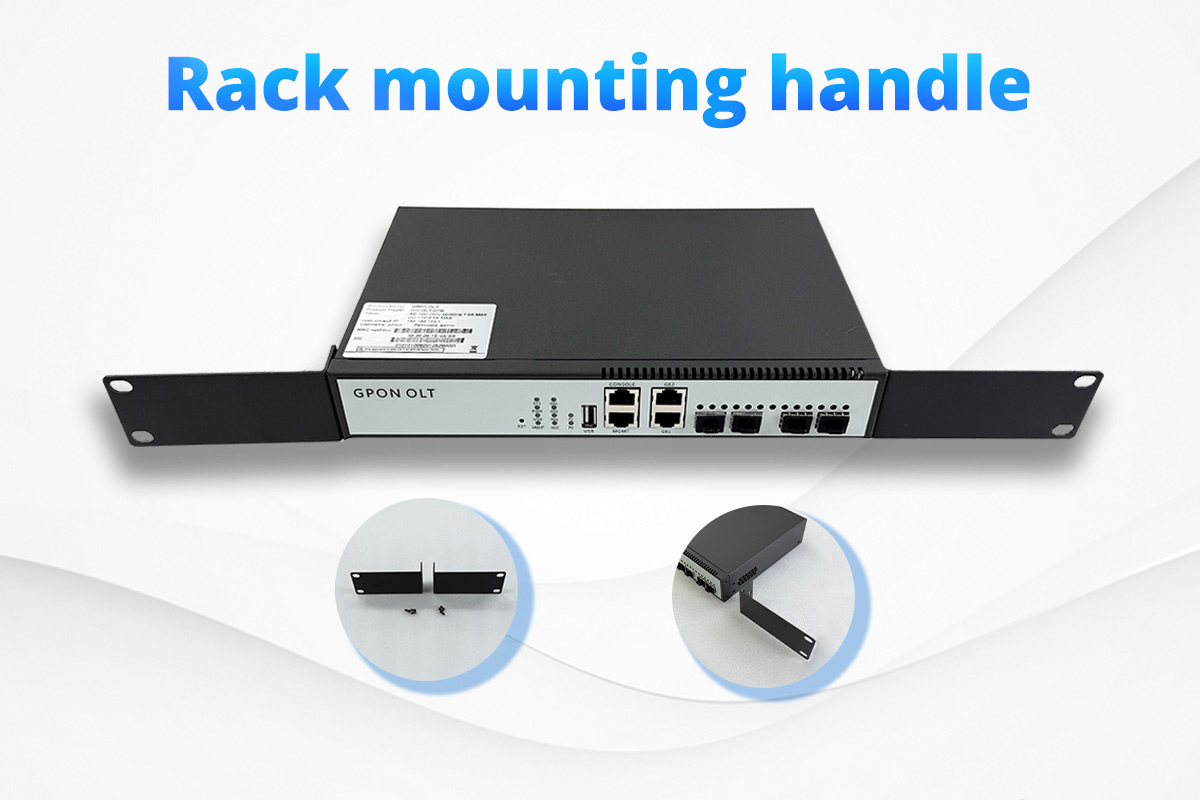

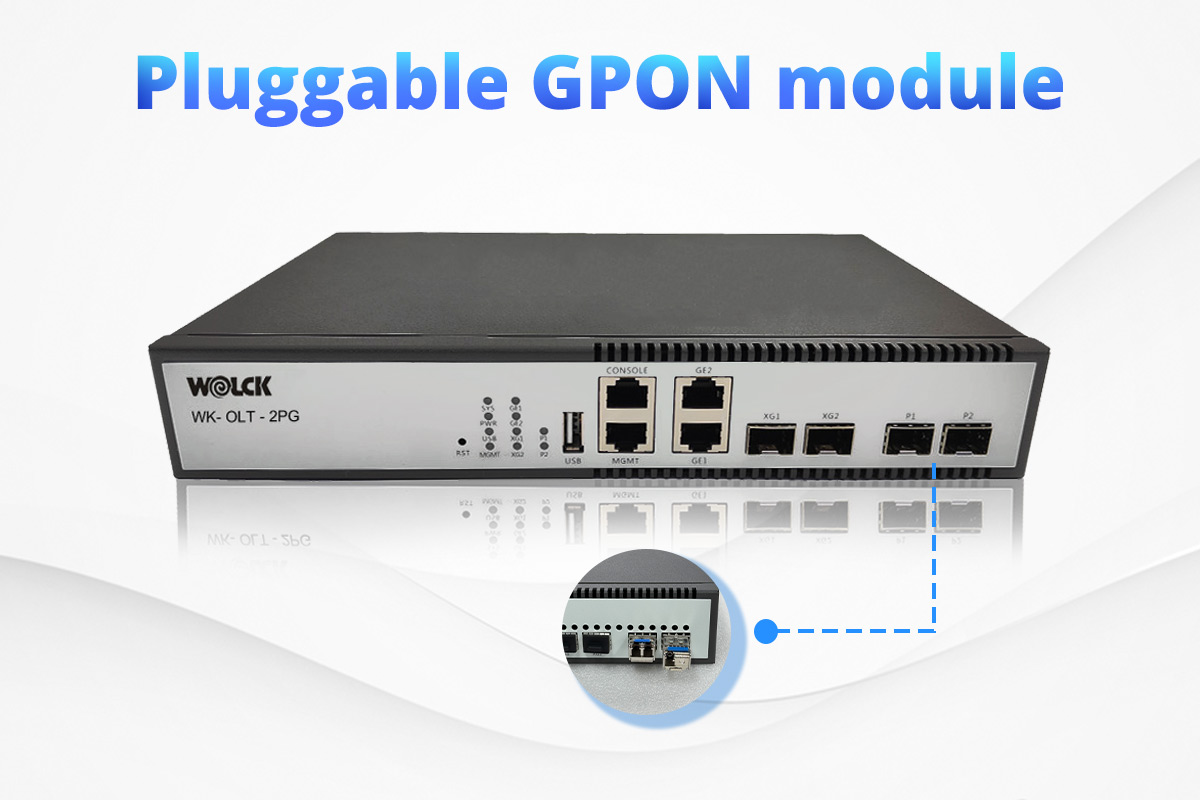

The WK- OLT - 2PG is a compact 1U-height device, making it easy to install and maintain while saving valuable space. Leveraging industry-leading technology, it offers an efficient GPON solution with optimized bandwidth utilization and robust Ethernet service support, enabling operators to deliver reliable service quality to users.
Ø Complies with ITU-T G.984/G.988 technical standards, ensuring strong interoperability.
Ø Offers rich Layer 2/3 switching features and flexible management options.
Ø Supports various link redundancy protocols such as FlexLink, STP, RSTP, MSTP, ERPS, and LACP.
Ø Supports routing protocols including RIP, OSPF, BGP, ISIS, and IPv6.
Ø Provides redundant power backup.
Ø Supports terminal power-off alarm notifications.
It is widely applicable in network construction for FTTH access by carriers, VPNs, government and enterprise campuses, and campus networks.
The device also supports mixed networking with various types of ONUs, significantly reducing costs for operators.
|
Interface |

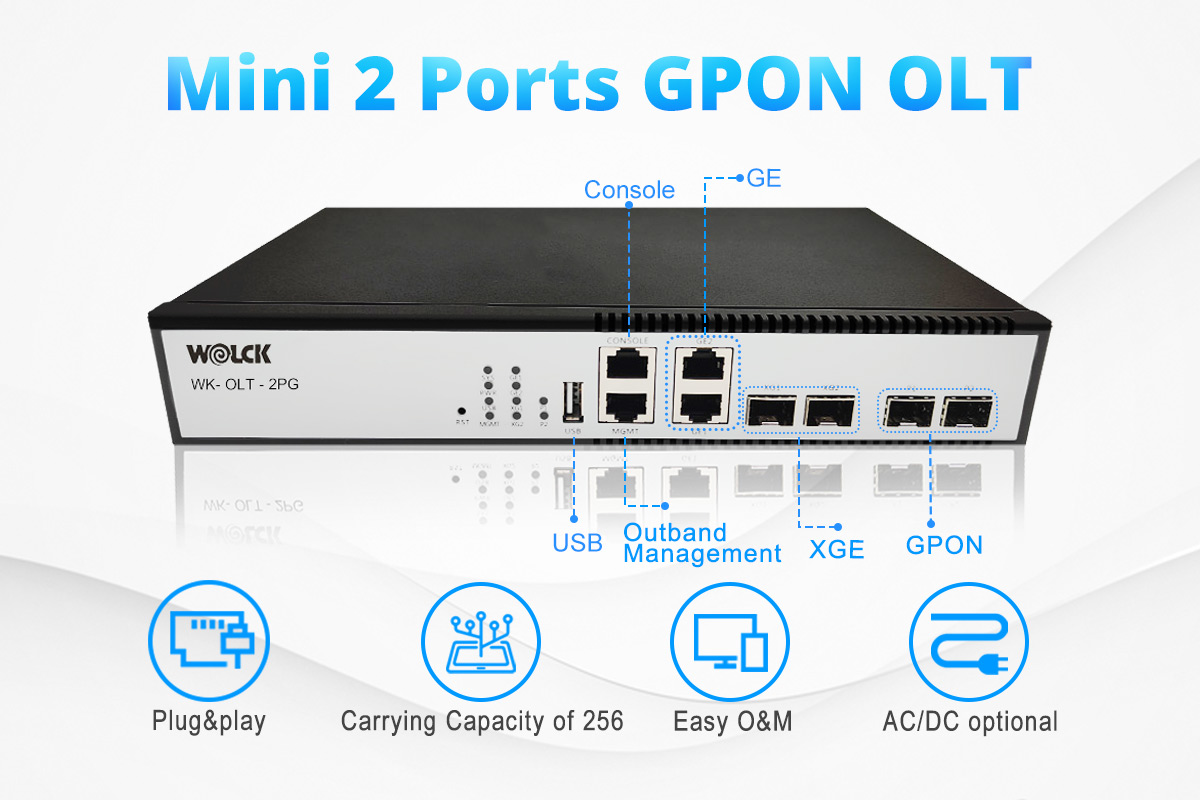

2 * GPON port; 2 * 10/100/1000M Base-T; 2*1000M Base-X SFP/2*10GE SFP+; Dual power supply optional |
|
Exchange Capacity |
51.5Gbps |
|
Packet Forwarding Rate |
59.7Mpps |
|
Memory and Storage |
Memory: 32MB; Storage: 512MB |
|
Management Port |
1*Console Port; 1*Management Port |
|
PON |
Complies with ITU-T G.984/G.988 standards 20 km physical differential distance, 60 km logical distance 1:128 maximum splitting ratio Standard OMCI management features Flexibly compatible with any brand of ONT Supports batch software upgrades for ONUs |
|
Weight |
≤2kg |
|
Fan |

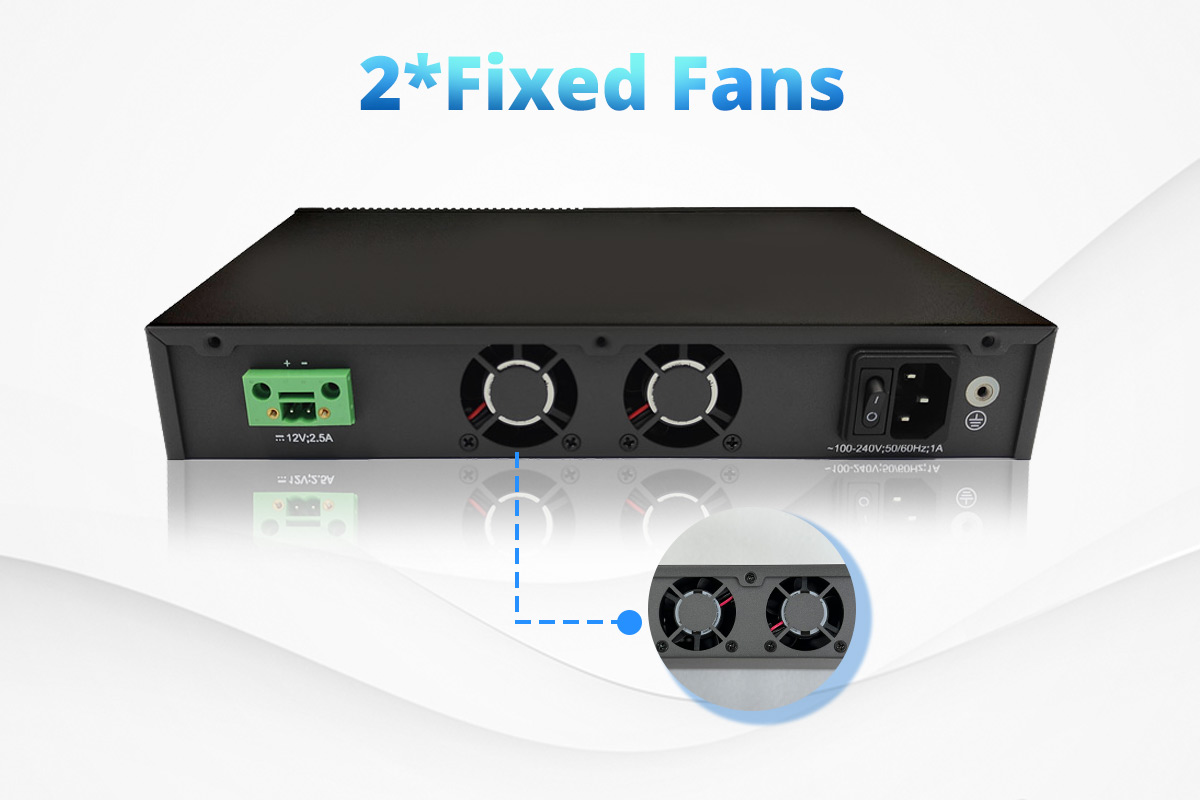

2*Fixed Fans |
|
Power |

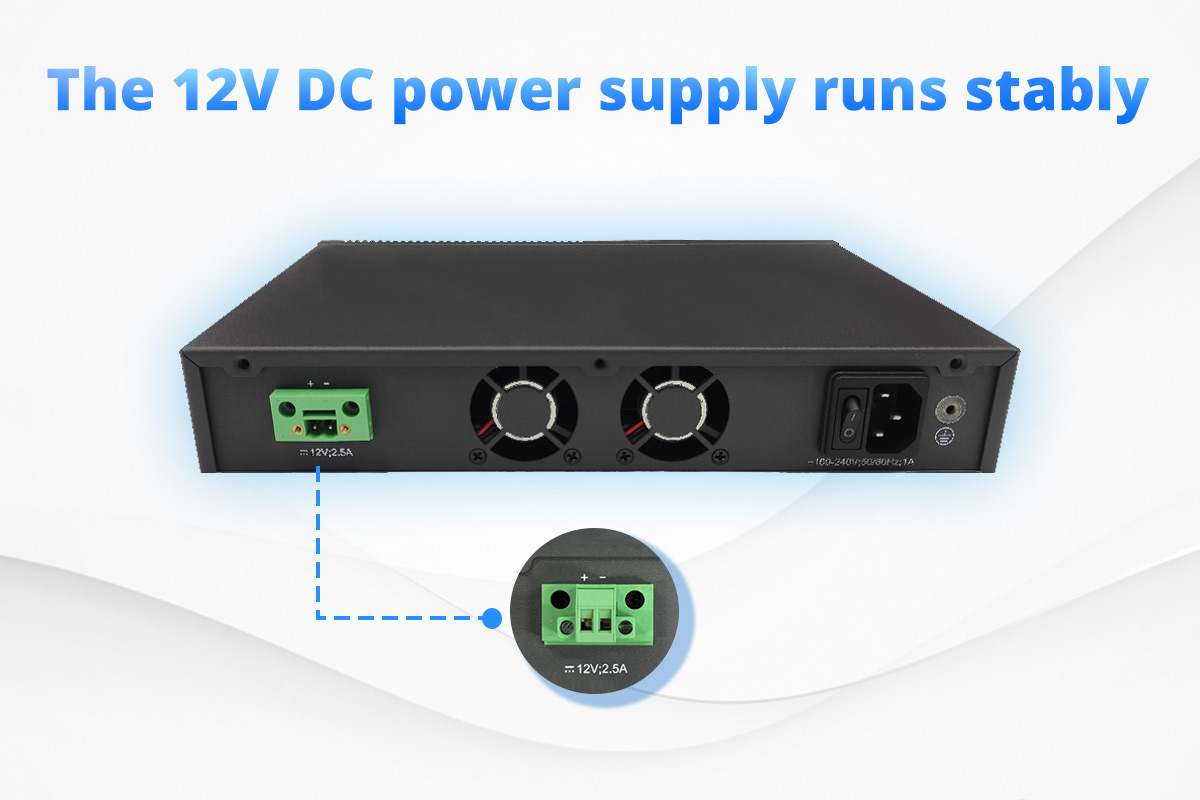

AC: 100～240V, 47/63Hz； DC: 12V |
|
Power Consumption |
≤30W |
|
Dimensions (W *D *H) |
265mm*180mm*40mm |
|
Environment Temperature |
Working Temperature：-10℃～55℃ Storge Temperature：-40℃～70℃ |
|
Environment Humidity |
Operating Humidity: 10%～95% (non-condensing) Storage Humidity: 10%～95% (non-condensing) |
|
Environment Friendly |
China RoHs,、EEE |
