Mechanics |
||||
|
Dimensions |
440mm(L)*293mm(W)*44mm(H) |
|||
|
Weight |

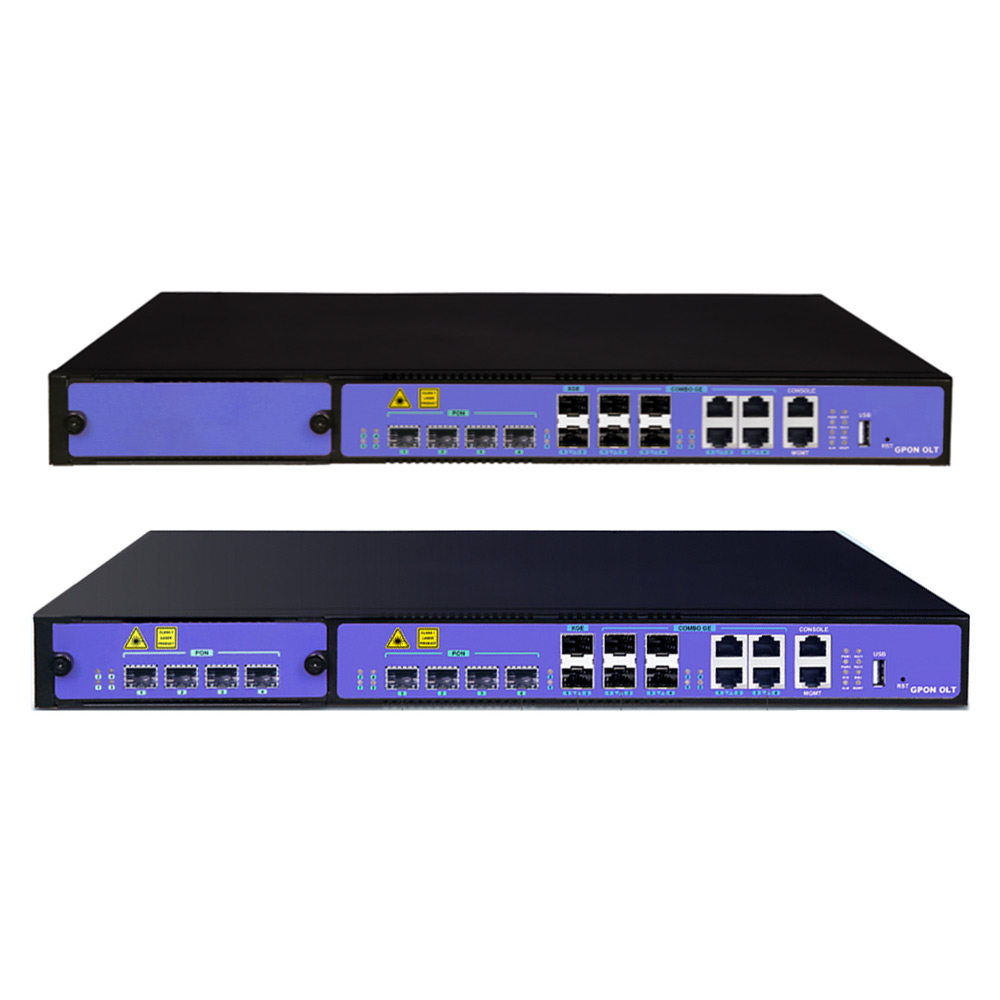

3.0Kg (WK1604S-C1) 3.0Kg (WK1604E-C1) 3.6Kg (WK1608E-C1) |
|||
|
|
|
|||
|
Hardware |
||||
|

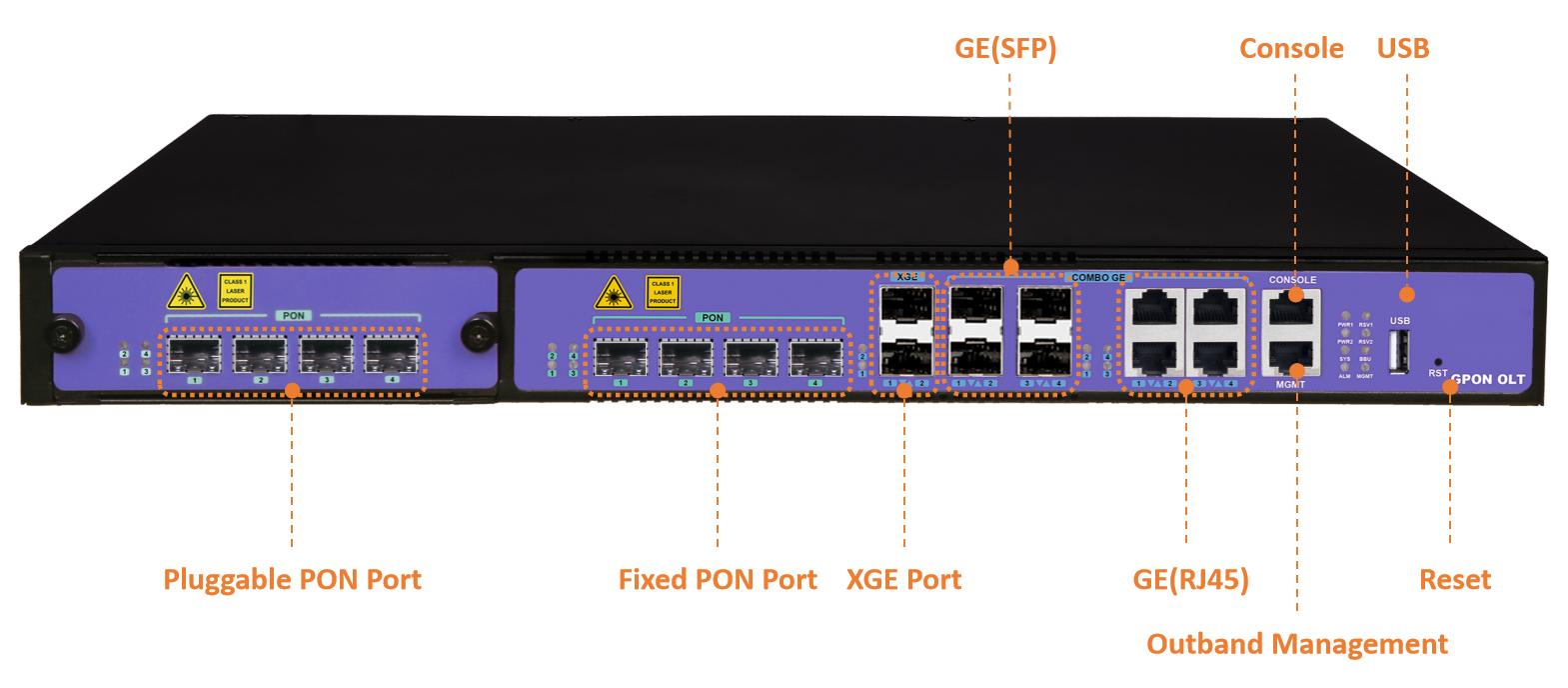

Uplink Port |
COMBO port |
4* 10/100/1000M auto-negotiation Ethernet ports |
||
|
4* SFP interfaces |
||||
|
10-Gigabit |
2* SFP+ interfaces |
|||
|
PON Port |
Quantity |
4 (WK1604S-C1) 4 + (4) (WK1604E-C1/WK1608E-C1) |
||
|
Physical Interface |
SFP slot |
|||
|
Interface Type |
GPON: ITU-TG.984.2 Class B+/Class C+/Class C++ |
|||
|
Max Splitting Ratio |
GPON: 1:128 |
|||
|
Management Port |
1* 100/1000BASE-Tx out-band Ethernet port 1* CONSOLE local management port |
|||
|
USB Port |
1* USB interface (It’s used to backup configuration, upgrade program and record log information) |
|||
|
PON Port Attribute |
Transmission Distance |
20KM |
||
|
Port Rate |
GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps |
|||
|
Wavelength |
Forwarding: 1490nm Receiving: 1310nm |
|||
|
Interface Type |
SC/UPC |
|||
|
Fiber type |
9/125μm SMF (Single Mode Fiber) |
|||
|
Light Transmission Power |
Class B+: +1.5 ~+5dBm |
Class C+: +3 ~ +7dBm |
ClassC++: +4.5 ~ +10dBm |
|
|
Receiving Sensitivity |
Class B+: -28dBm |
Class C+: -30dBm |
Class C++: -31dBm |
|
|
Saturation Power |
Class B+: -8dBm |
Class C+: -12dBm |
Class C++: -10dBm |
|
|
Network Management Method |
Support CLI, SNMP, TELNET, SSH, WEB |
|||
|
Business Capabilities |
Support device log, device upgrade, device management, condition monitoring, configuration management, and user management. Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on. PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. Layer 3 function: support static routing, dhcp-relay and vlanif configuration. |
|||
