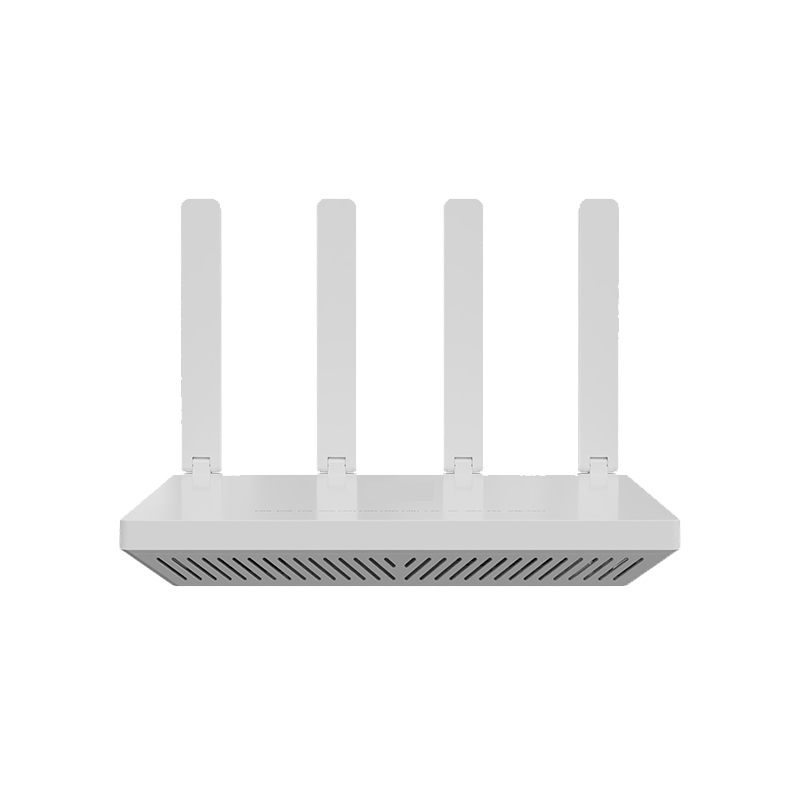

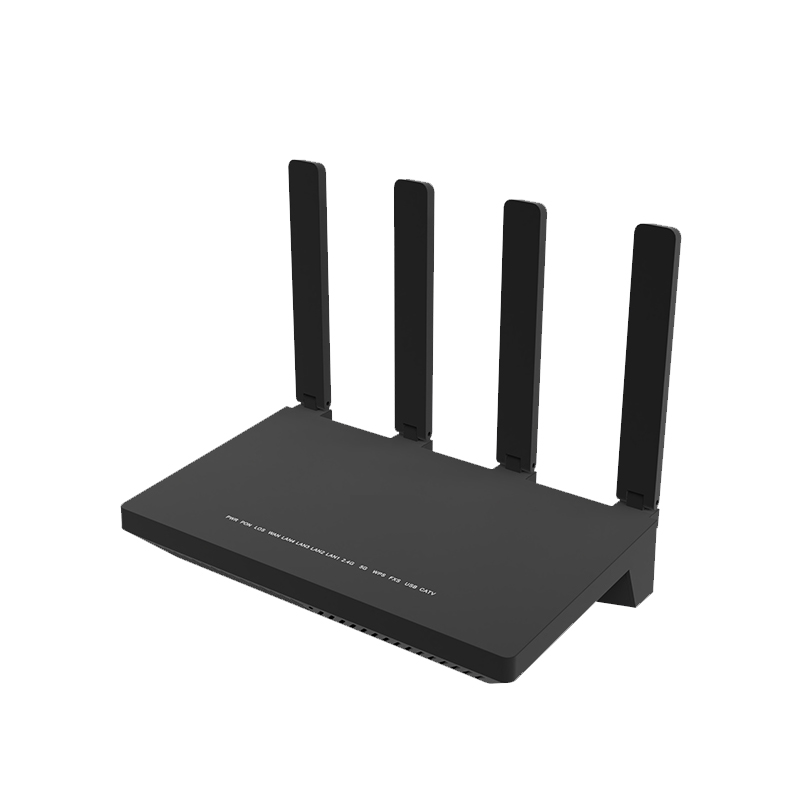

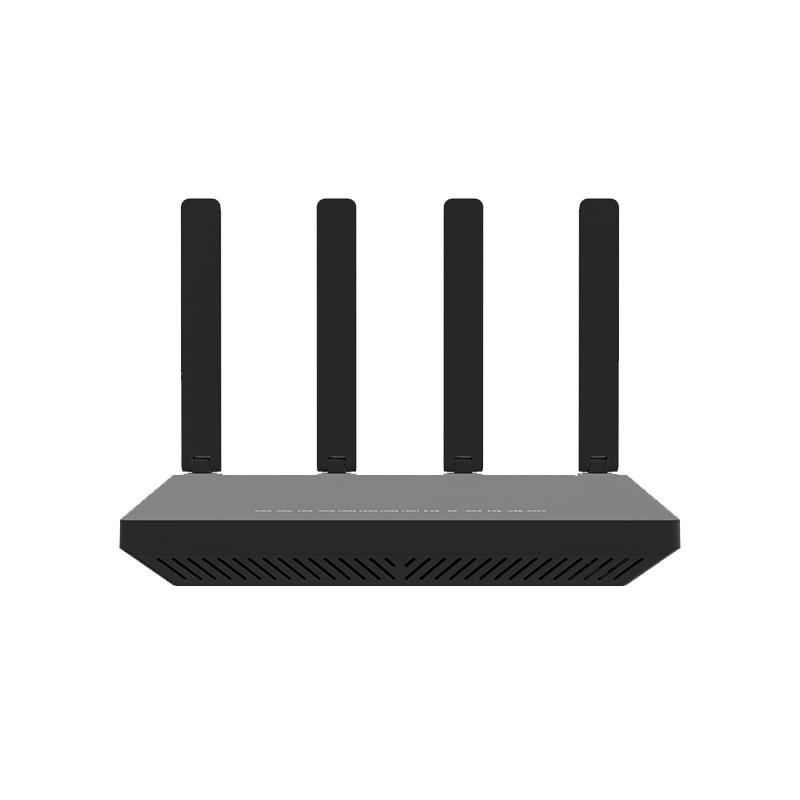

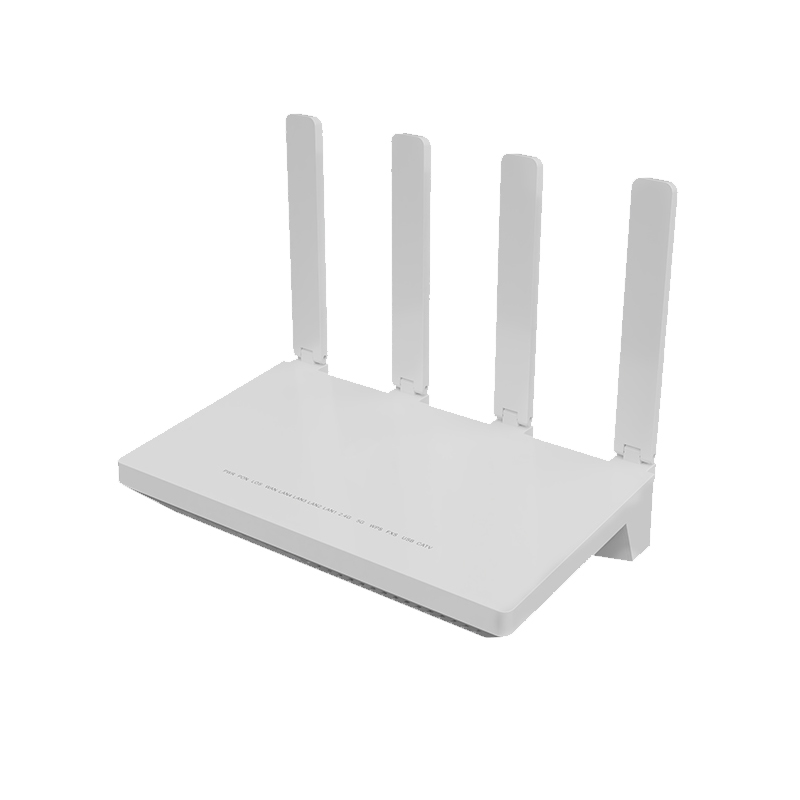

New-gen WiFi 6 AX1500 ONT
XPON Dual Mode | Cost-effective AX1500 WiFi6 | CATV with AGC Support | Tray-mounted Fiber Structure
Why WK-3814AXWTC ？
Enjoy WiFi 6 at Best Value

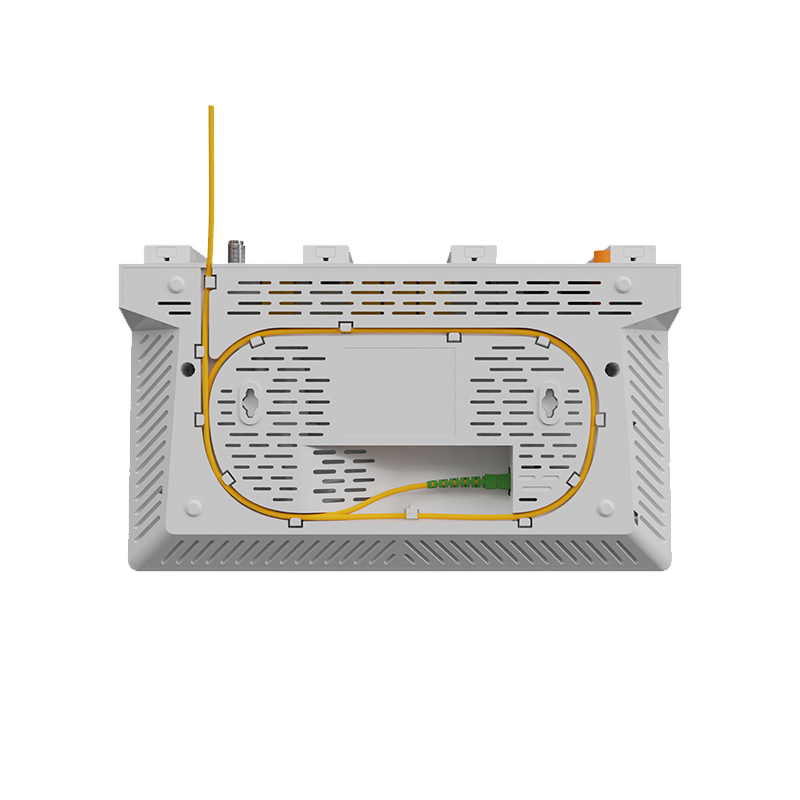

Unique Design, Quality Details
WiFi 6+CATV for Simplified Network Layout
Powerful VoIP Function
|
○ Hardware Parameter |
|
|
Dimension |
260.4mm×157.4mm×45.8mm(L×W×H) |
|
Net weight |
0.45Kg |
|
Operating condition |
Operating temp: -10 ~ +55°C Operating humidity:5 ~ 95% (non-condensed) |
|
Storing condition |
Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed) |
|
Power adapter |
DC 12V, 1.5A, external AC-DC power adaptor |
|
Power supply |
≤18W |
|
Interface |

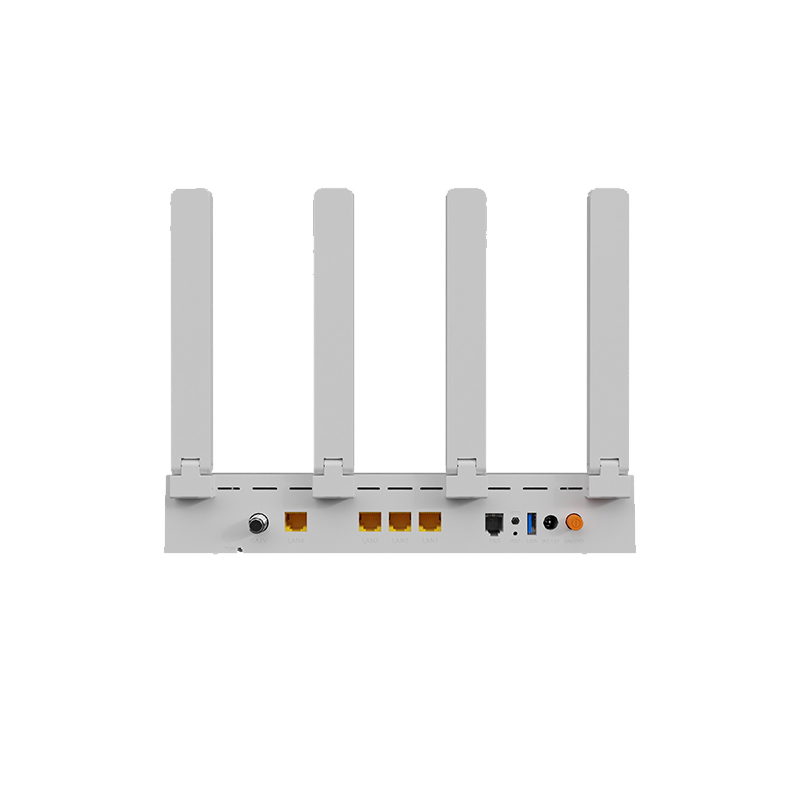

1XPON+4GE+1POTS+1USB3.0+CATV+WiFi6 |
|
Indicators |
PWR ,PON ,LOS ,WAN ,LAN1~4 ,2.4G ,5G , WPS ,FXS ,USB ,CATV |
|
|
|
|
○ Interface parameter |
|
|
PON Interface |
l 1XPON port(EPON PX20+ and GPON Class B+) l SC single mode, SC/APC connector l TX optical power: 0～+4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm(GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm |
|
User interface |
l 4×GE, Auto-negotiation,RJ45 ports l 1×POTS RJ11 Connector |
|
Antenna |
4 ×5dBi external antennas |
|
CATV interface |
l Optical receiving wavelength: 1550±10nm l Optical input range: +2～-18dBm l Optical reflection loss: ≥40dB l RF frequency range: 47～1000MHz l RF output impedance: 75Ω l RF output level and AGC range: ≥81±2dBuv@+1～-10dBm ≥79±2dBuv@ 0～-11dBm ≥77±2dBuv@-1～-12dBm ≥75±2dBuv@-2～-13dBm ≥73±2dBuv@-3～-14dBm ≥71±2dBuv@-4～-15dBm l MER: ≥32dB(-14dBm optical input) |
|
○ Function Data |
|
|
O&M |
l WEB/TELNET/OAM/OMCI/TR069 l Support private OAM/OMCI protocol |
|
Internet connection |
Support Routing Mode |
|
Multicast |
l IGMP v1/v2/v3, IGMP snooping l MLD v1/v2 snooping |
|
VoIP |
l SIP and IMS SIP l G.711a/G.711u/G.722/G.729 Codec l Echo cancellation,VAD/CNG,DTMF Relay l T.30/T.38 FAX l Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference l Line testing according to GR-909 |
|
WIFI |
l WIFI6: 802.11a/n/ac/ax 5GHz l WIFI4: 802.11g/b/n 2.4GHz l WiFi: 2.4GHz 2×2, 5.8GHz 2×2, 5dBi antenna, rate up to 1.5Gbps,Multiple SSID l WiFi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 l Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM l Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band l Support WIFI Easy-mesh function |
|
L2 |
802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN |
|
L3 |
IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS |
|
Firewall |
Anti-DDOS, Filtering Based on ACL/MAC /URL |
