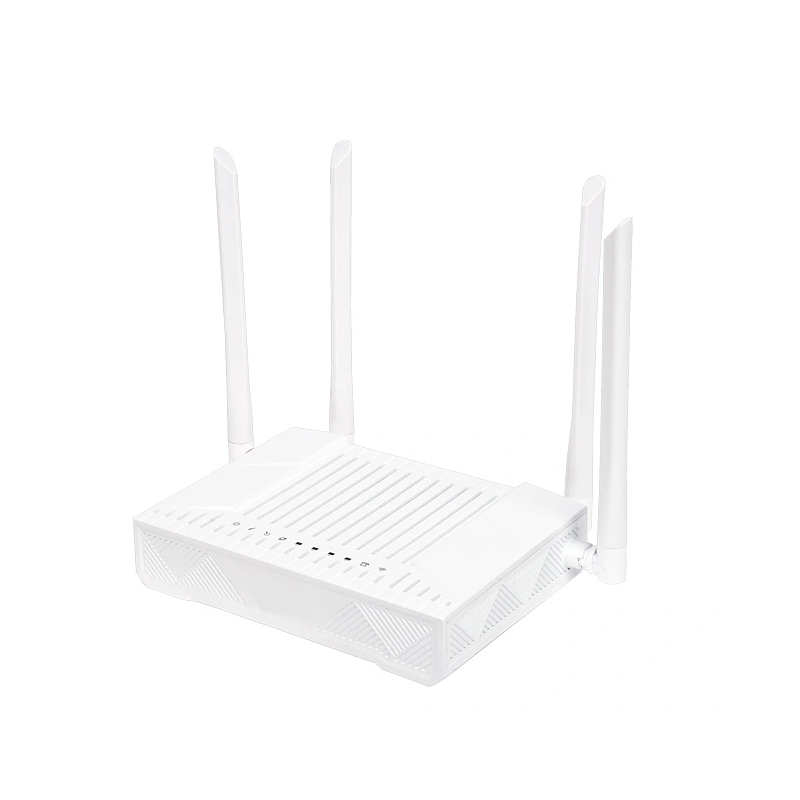

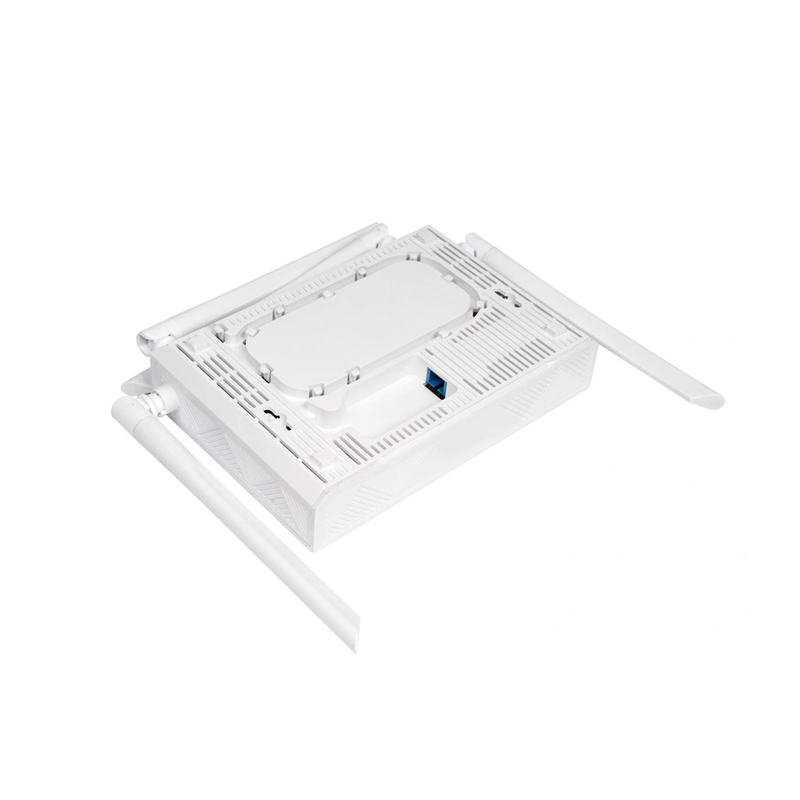

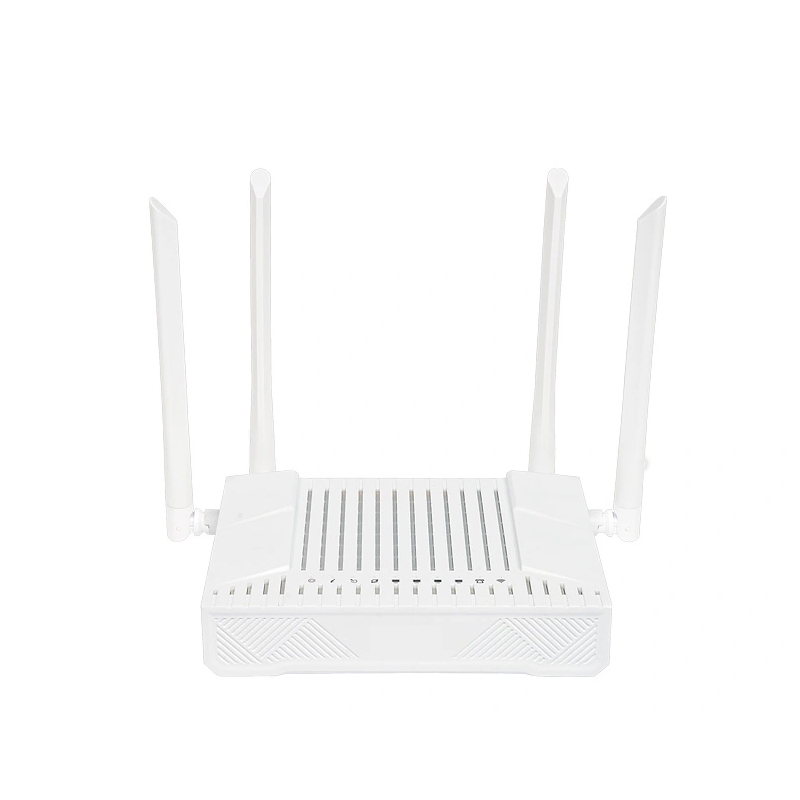

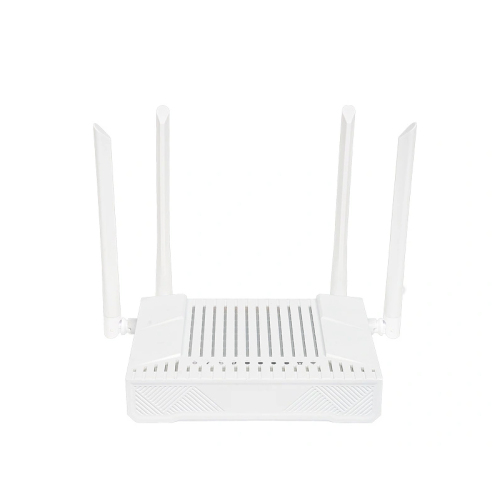

Name: 4GE+1POTS+2WiFi6(AX1500) XPON ONU
Brand: Shenzhen Wolck Network Product Co.,Ltd
SKU: WK-3814AXWT
Availability: InStock
Rating: 5 (1 reviews)

Home > ONU > WiFi6 ONU

Description Technical Parameter Review

Description

Dual Band Gigabit Wi-Fi6 ONU Series

Next-Gen Wi-Fi6 Speeds

Multiple Devices Access

Achieve Whole-Home Coverage

Ensuring a Seamless Experience for Voice, Video, and Data Services

User-Friendly Management

Technical Parameter

Indicators		PWR / PON / LOS / LAN1-4 / INT / TEL / WIFI
PON Port	PON Mode	EPON：1000BASE-PX20+ symmetric GPON：FSAN G.984.2 standard,Class B+
	PON Rate	EPON：1.25Gbps downstream/upstream GPON：2.488Gbps/1.244Gbps downstream/upstream
	Wavelength	Transmit: 1310nm	Receiver: 1490nm
Working temperature	0 to 40ºC
Operating humidity	10% ~ 90% (Non-condensing)
Power consumption	<18W
User Port (LAN)	RJ-45 connector
	4* 10/100/1000Mbps adaptive Ethernet port
	Full/half duplex
	Auto MDI/MDI-X

Review
