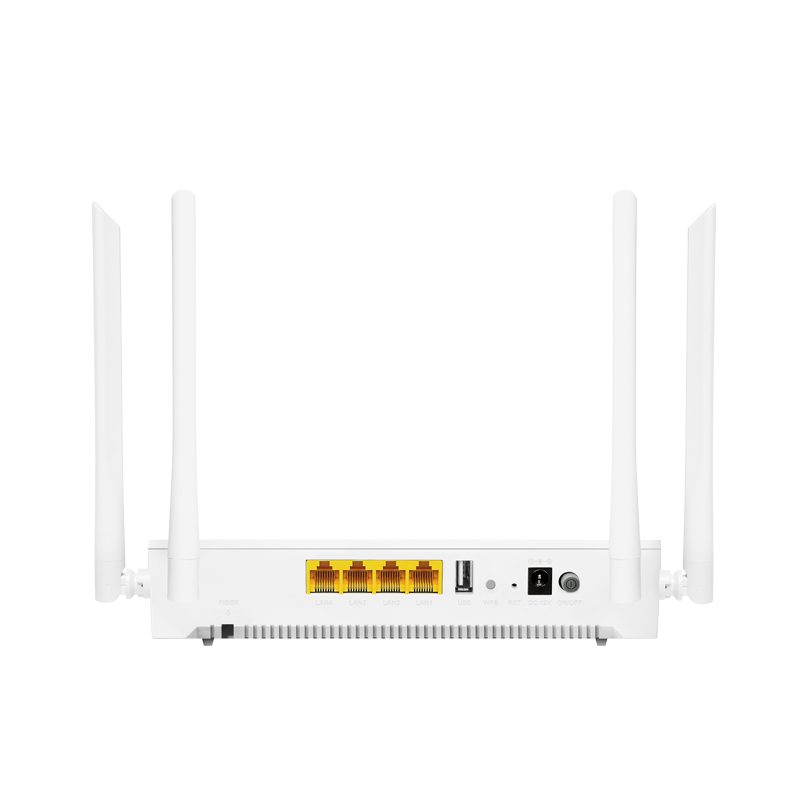

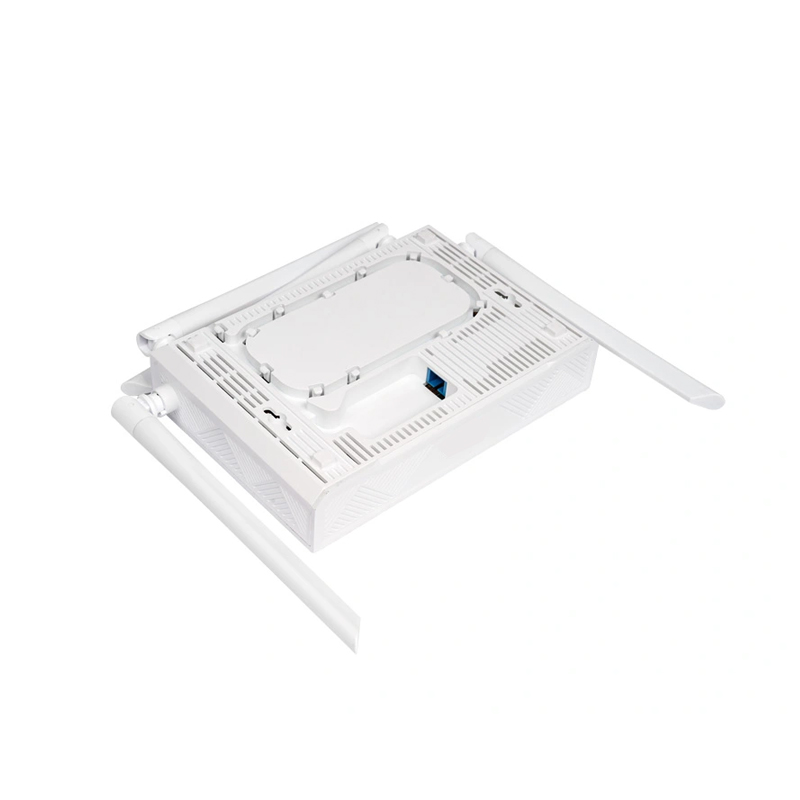

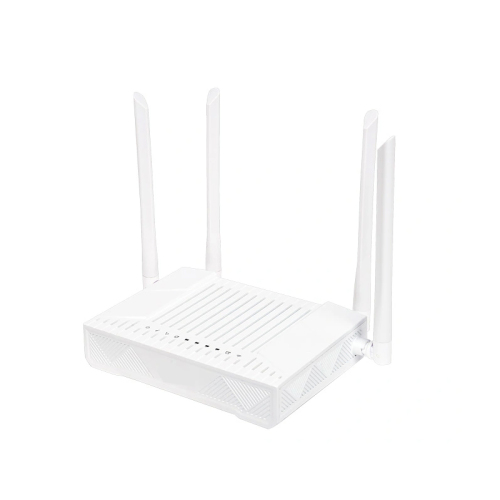

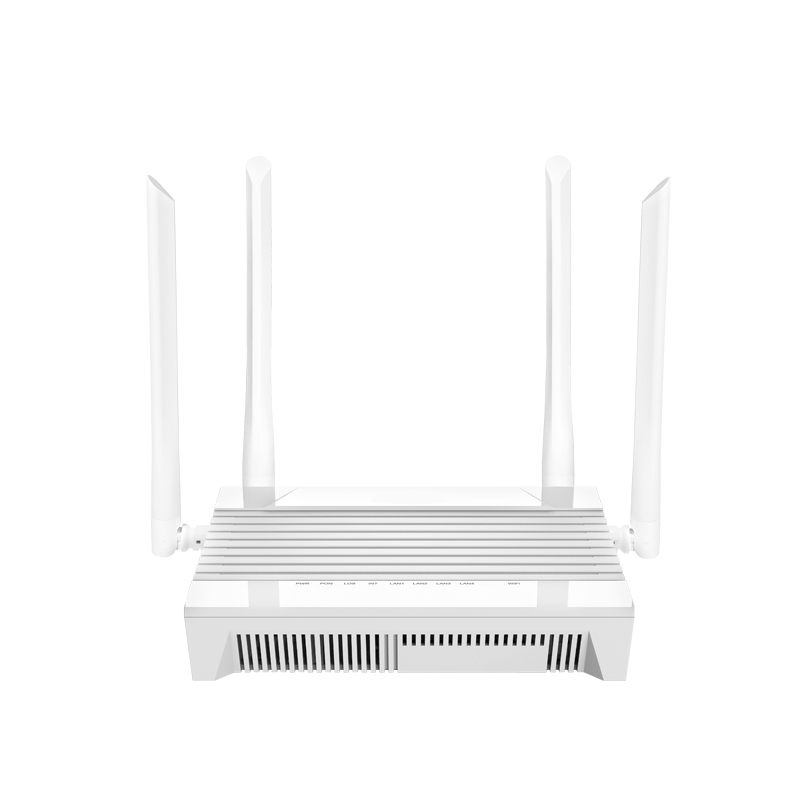

Name: 4GE+2WiFi6(AX3000) XPON ONU
Brand: Shenzhen Wolck Network Product Co.,Ltd
SKU: WK-3834AXW
Availability: InStock
Rating: 5 (1 reviews)

Home > ONU > WiFi6 ONU

Description Technical Parameter Review

Description

Dual Band Gigabit Wi-Fi6 ONU Series

Next-Gen Wi-Fi6 Speeds

Multiple Devices Access

Achieve Whole-Home Coverage

Ensuring a Seamless Experience for Voice, Video, and Data Services

User-Friendly Management

Technical Parameter

PON Port	PON Mode	EPON：1000BASE-PX20+ symmetric GPON：FSAN G.984.2 standard,Class B+
	PON Rate	EPON：1.25Gbps downstream/upstream GPON：2.488Gbps/1.244Gbpsdownstream/upstream
	Wavelength	Transmit: 1310nm	Receiver:1490nm
	Receiving sensitivity	EPON：-27dBm GPON：-28dBm
	Saturated power	EPON：-3dBm GPON：-8dBm
	Transmitting power	EPON:0～4dBm GPON：0.5～5dBm
User Port (LAN)	RJ-45 connector
	4* 10/100/1000Mbps adaptive Ethernet port
	Full/half duplex
	Auto MDI/MDI-X
Indicators	PWR / PON / LOS / LAN1-4 / INT / WIFI
Working temperature	0 to 40ºC
Operating humidity	10% ~ 90% (Non-condensing)
Dimensions	210mm135mm45mm
Weight	About 228g
Power consumption	<18W
